Functions and Features
1. The picture can reach a maximum of 240odpi, which can perfectly highlight the high precision of the picture no matter what material is printed.
2. Print head collision avoidance system design to avoid damage to the carriage or print head.
3. Medium thickness automatic detection system to greatly improve the print quality of the pattern.
4. All-steel integrated frame, effectively improve the stability of the machine.
Technical Parameter
| Model | Technical Parameter |
| UV2512 | Type of Printheads | Ricoh GEN5 |
| Quantity of Printheads | 2-8 pcs |
| Color Configuration | C/M/Y/K/LC/LM/White/Varnish Free Combination |
| Printing Size | 2500mm*1250mm±2mm |
Printing Speeds
(4 heads) | High Speed | 24.3m²/h |
| Middle Speed | 16.2m²/h |
| Low Speed | 12.3m²/h |
| Media Type | Glass,Acrylic,Wood,Tile,Metal,PVC,Corrugated,Plastic,etc. |

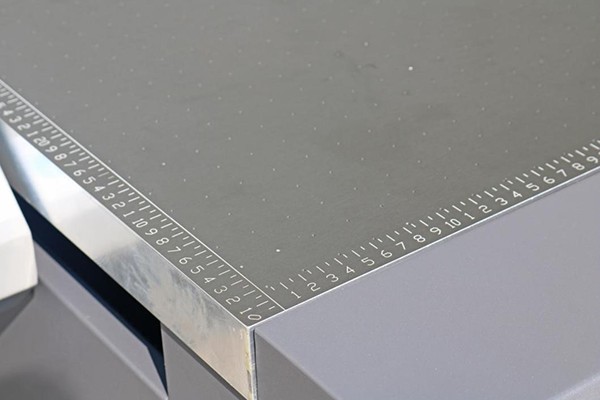

| Printing Platform | Vacuum Adsorption Platform |
| Printing Thickness | 0.1-95mm |
| Curing System | LED Curing Light LED |
| RIP Software | Ultraprint；Optional Photoprint,Onyx,Caldera |
| Interface | Gigabit Ethernet |
| Image Format | TIFF,BMP,EPS,JPEG etc |
| Color Control | Comply with ICC Standard,have Curve and Density Adjustment Function |
| Print Resolution | 1440*2400dpi(Maximum Resolution) |
| Power Supply | 220VAC(±5%),50Hz,5.0KW(10KVA) |
| Operation Environment | Temperature：18-30℃,Humidity：30%-70%(No Condensation)
Independent,Clean,Low Dust,Less Light,Well Ventilated Workshop |
| Machine Size | 4170mm(L)×2070mm(W)×1380mm(H) |
| Net Weight | 1100kg |
